Description

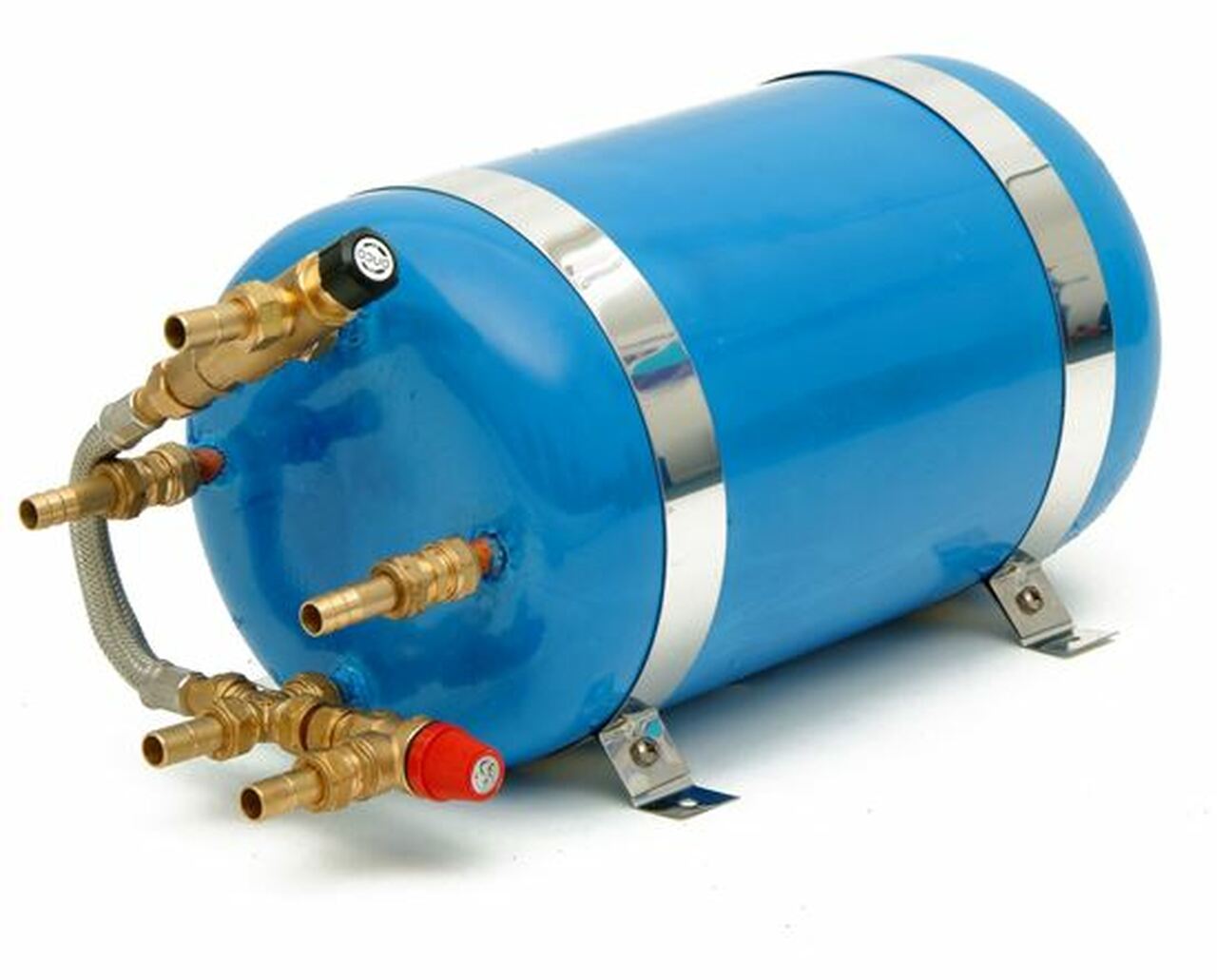

Water Heater for a RV / Motorhome/ Conversion T1N Dodge 2001-2006 Sprinter Van



• SureCal Horizontal 10 liter / 2.64 gal Single Coil Calorifier
• SureCal 15 liter / 3.96 gal Horizontal Single Coil Calorifier
• SureCal 20 liter / 5.28 gal Horizontal Single Coil Calorifier  (High popularity Call for Availability)
• 12V / 110V element (RV battery and mains)

• The calorifier is made of 100% copper and insulated in a polyurethane jacket

• Retains heat for up to 24 hours after the immersion coil has been switched off.

• Quick and easy to install, with complete instructions provided in the kit.

• Immersion hot water heater, barbed engine coil connections, stainless steel fixing brackets and pressure release valve are included with the calorifier.

• For safety reasons, a thermostatic mixer valve is fitted as standard, which increases the availability of hot water.

• Water that is stored within the boiler reaches the same temperature as the immersion coil (generally 85°C / 185°F).

• Each calorifer is individually bench tested ensuring quality and reliability.

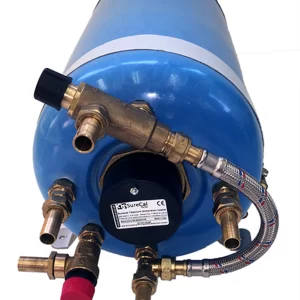

SureCal 10 liter horizontal calorifier/boiler

Calorifiers from SureCal are built from the best materials, making them efficient and dependable. It uses drop coil technology as well as an immersion heater to heat up the stored water. With the finned surface heat exchanger used in the boiler, heat recovery is unmatched.

The heat from your engine’s cooling system is used to warm up the clean water from your onboard water system. The RV water heater also features a standard thermostatic mixer valve, which increases hot water capacity by up to 25 percent.

Benefits of the 10 Liter SureCal:

• Polyurethane insulation is applied to the copper calorifier

• After being switched off, the immersion coil retains heat for up to 24 hours.

• Complete instructions are included for quick and easy installation.

• The calorifier features an immersion hot water heater, stainless steel fixing clamps, and barbed engine coil connections.

• Thermostatic mixer valves are standard on every unit to ensure ample hot water supply.

• In the boiler, water is heated to the same temperature as the immersion coil (85°C / 185°F).

Complete your domestic water circle

In order for your hot water system to function smoothly and securely, only a few essential parts are needed. A complete water circle consists of an expansion tank, an accumulator tank, a water pump, and a calorifier.

An expansion tank is used to protect closed water heating systems and domestic hot water systems from sudden pressure spikes. It can be fitted in any orientation, preferably as close to the calorifier as possible. A 2 liter or 5 liter expansion tank should be sufficient to meet most of your hot water needs in an RV, campervan, or mobile home.

An accumulator tank consists of a water chamber and a pre-pressurized air bladder. It is installed on the pressurized side of the water pump and dampens pressure spikes in the water system. Water accumulator tanks conserve battery power, reduce pump cycling, and increase the durability of water pumps.

RVs require water pumps to provide running water, which is essential for living off-grid comfortably. With an onboard water pump, you can wash your hands, fill the sink, take a shower, and do many other tasks at home that you take for granted. Normally, a 30PSI water pump is sufficient to provide a comfortable stream of water for RV owners.

Included in the kit:

• Thermostatic mixer valve

• 4 bar pressure release valve

• 1kW immersion heater (120/240V)

• Non-return valve

• 15mm barbed connections for coil, ready for 15mm push fit plastic plumbing

• Stainless Steel saddles

Technical specifications:

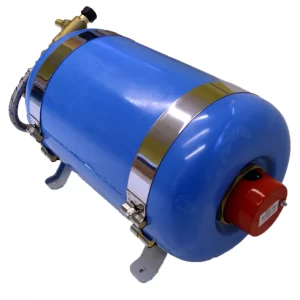

SureCal 15 liter / 4 Gal horizontal calorifier for RV

Please note – the outer shell is very soft, therefore you might see minor cosmetic defects, but they have no impact to the performance of the calorifier.

SureCal calorifiers are made of the finest quality materials available, which guarantees the ultimate performance and reliability. A calorifier stores your hot water, and heats it up using an immersion heater, in addition to using drop coil technology. The finned surface heat exchanger used in the boiler provides unrivaled heat recovery.

Heat from the engine cooling system is used to heat clean fresh water from your onboard water system. The RV water heater also includes a thermostatic mixer valve, fitted as standard for safety reasons, and also increases the supply of hot water available by up to 25%.

Benefits of the 15 Liter SureCal Boiler:

• The calorifier is made of 100% copper and insulated in a polyurethane jacket
• Retains heat for up to 24 hours after the immersion coil has been switched off.
• Quick and easy to install, with complete instructions provided in the kit.
• Immersion hot water heater, barbed engine coil connections, stainless steel fixing brackets and pressure release valve are included with the calorifier.
• For safety reasons, a thermostatic mixer valve is fitted as standard, which increases the availability of hot water.
• Water that is stored within the boiler reaches the same temperature as the immersion coil (generally 85°C / 185°F).
• Each calorifer is individually bench tested ensuring quality and reliability.

Complete your domestic water circle

There are only a few essential parts that you need, to ensure that your hot water system works smoothly and securely. A full water circle includes an expansion tank, an accumulator tank, a water pump, and a calorifier.

An expansion tank is a small tank used to protect closed water heating systems and domestic hot water systems from excessive pressure. They can be fitted in any orientation, preferably as near to the calorifier as is reasonably possible. We offer 2 liter and 5 liter expansion tanks, which should be enough to satisfy most of your RV, campervan, or mobile home hot water needs.

Calorifier Size	Recommended Expansion Tank Size
0-22 Litres	2 Litres
22-55 Litres	5 Litres

An accumulator tank is a water chamber which has a pre-pressurized internal air bladder. They are installed on the pressured side of your water pump and dampen water pressure ‘spikes’. Accumulator water tanks help reduce pump cycling, increase the water pump’s longevity, and also save battery power.

A water pump provides running water in an RV, which is crucial for living off-grid in comfort. An onboard water pump makes it possible to shower, fill the sink, flush the toilet, and carry out many other tasks you take for granted at home. For most RV owners, a 30PSI water pump is enough to give you a comfortably strong stream of water.

Included in the kit:

• Thermostatic mixer valve
• 4 bar pressure release valve
• 1kW immersion heater (120/240V)
• Non-return valve
• 15mm barbed connections for coil, ready for 15mm push fit plastic plumbing
• Stainless Steel saddles

Technical specifications:

Capacity	4 gal (15 l)
Orientation	Horizontal
Coils	Single
Dimensions	25.19 x 9.45 x 9.65 in (640 x 240 x 245 mm)
Weight	19lbs (8.5 kg)



SureCal 20 Liter horizontal calorifier for RV

Please note – the outer shell is very soft, therefore you might see minor cosmetic defects, but they have no impact to the performance of the calorifier.

SureCal calorifiers are made of the finest quality materials available, which guarantees the ultimate performance and reliability. A calorifier stores your hot water, and heats it up using an immersion heater, in addition to using drop coil technology. The finned surface heat exchanger used in the boiler provides unrivaled heat recovery.

Heat from the engine cooling system is used to heat clean fresh water from your onboard water system. The RV water heater also includes a thermostatic mixer valve, fitted as standard for safety reasons, and also increases the supply of hot water available by up to 25%.

Benefits of the 20 Liter SureCal Boiler:

• The calorifier is made of 100% copper and insulated in a polyurethane jacket
• Retains heat for up to 24 hours after the immersion coil has been switched off.
• Quick and easy to install, with complete instructions provided in the kit.
• Immersion hot water heater, barbed engine coil connections, stainless steel fixing brackets and pressure release valve are included with the calorifier.
• For safety reasons, a thermostatic mixer valve is fitted as standard, which increases the availability of hot water.
• Water that is stored within the boiler reaches the same temperature as the immersion coil (generally 85°C / 185°F).
• Each calorifer is individually bench tested ensuring quality and reliability.

Complete your domestic water circle

There are only a few essential parts that you need, to ensure that your hot water system works smoothly and securely. A full water circle includes an expansion tank, an accumulator tank, a water pump, and a calorifier.

An expansion tank is a small tank used to protect closed water heating systems and domestic hot water systems from excessive pressure. They can be fitted in any orientation, preferably as near to the calorifier as is reasonably possible. We offer 2 liter and 5 liter expansion tanks, which should be enough to satisfy most of your RV, campervan, or mobile home hot water needs.

Calorifier Size	Recommended Expansion Tank Size
0-22 Litres	2 Litres
22-55 Litres	5 Litres

An accumulator tank is a water chamber which has a pre-pressurized internal air bladder. They are installed on the pressured side of your water pump and dampen water pressure ‘spikes’. Accumulator water tanks help reduce pump cycling, increase the water pump’s longevity, and also save battery power.

A water pump provides running water in an RV, which is crucial for living off-grid in comfort. An onboard water pump makes it possible to shower, fill the sink, flush the toilet, and carry out many other tasks you take for granted at home. For most RV owners, a 30PSI water pump is enough to give you a comfortably strong stream of water.

Included in the kit:

• Thermostatic mixer valve
• 4 bar pressure release valve
• 1kW immersion heater (120/240V)
• Non-return valve
• 15mm barbed connections for coil, ready for 15mm push fit plastic plumbing
• Stainless Steel saddles

Technical specifications:

Capacity	5.28 gal (20L)
Orientation	Horizontal
Coils	Single
Dimensions	31.5 x 9.45 x 9.65 in (800 x 240 x 245 mm)
Weight	22lbs (10kg)
